Power Line 및 Internet 또는 Mobile Network를 통하여 가로등 제어 Network 구축 및 제어.

HID 및 LED Lamp On/Off 및 Dimming 제어.

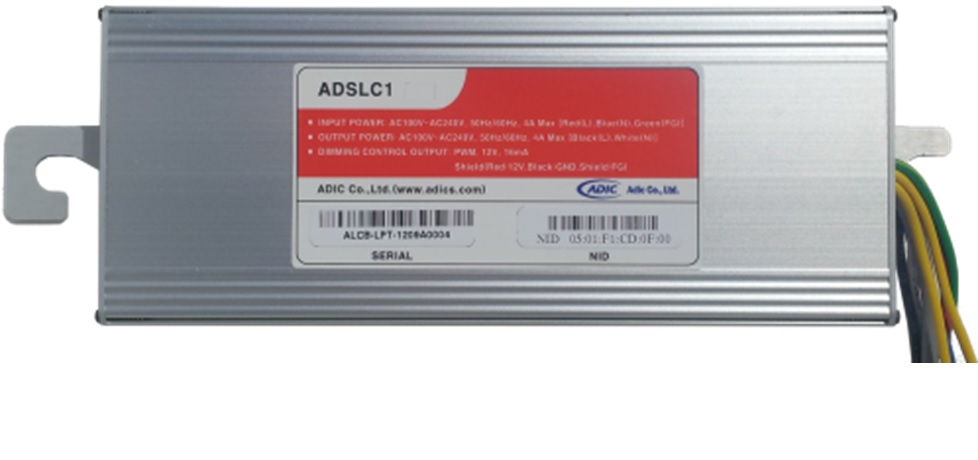

ADSLC-1

Product Features
  HID Lamp Two Step Dimming 제어 및 On/Off 제어 가능 모델.
  PWM 0 ~ 10V 를 통한 LED Lamp 제어 가능 모델.
  전 모델 전기 환경 변화(전력, 전류, 온도 등) 측정 가능.
  전 모델 LonMark 표준 만족, LonMark Certificate 보유.

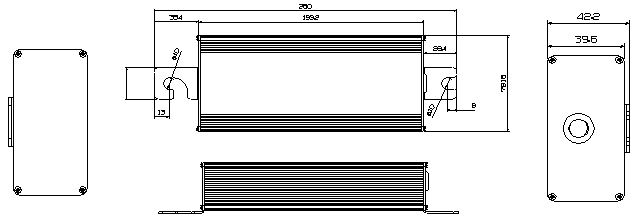

Dimension
Product Specifications

Item

LED PWM Dimming

LED PWM Dimming OC.

DALI Dimming

LED Voltage Dimming

HID,HPS LAMP

Model

ADSLC1-LC

ADSLC1-LP

ADSLC1-DL

ADSLC1-LV

ADSLC1-HPS

Max Rated Current in ON/OFF Power Section

1(4)A

1(4)A

1(4)A

1(4)A

4A

Lamp Max Peak Current

20A

20A

20A

20A

200A

Max Rated Voltage in ON/OFF Power Section

AC100V~AC240V

AC100V~AC240V

AC100V~AC240V

AC100V~AC240V

AC100V~AC240V

Voltage In Control Output

DC12V

DC35V (OC.)

DALI 16V

DC 0V ~ DC10V

-

Max Current in Control Output

10mA

10mA

250mA

6mA

6mA

Environment Conditions

-20 ~ 50, MAX 95% RH

Communication

LONWORKS PLC

Standard PROTOCOL(LONMARK)

Outdoor Luminaire Controller

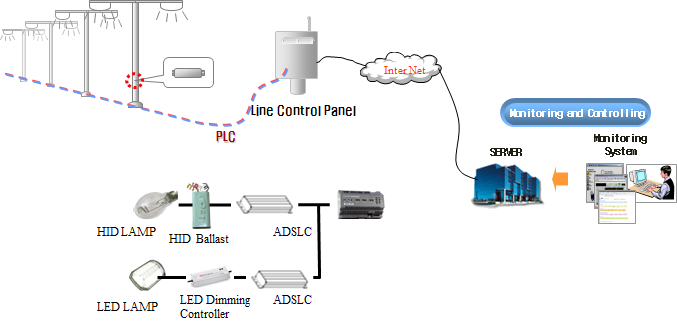

System Configuration
