EMS (Energy Management System)
Street Light Control System
LED Street Light Control System
It controls through power line communication, LED lights (street lights, security lights and tunnel lights) using the CMS and OLC(outdoor lighting controller). The system has capability of dimming control, status monitoring and electrical data measuring.
HID Street Light Control System
It controls through power line communication, HID street lights using our CMS (central management software), electronic smart ballast, line controller. Especially, the electronic smart ballast, an innovative product, provides significant energy saving through power factor correction circuit, dimming control function, LonWorks PLC circuit, etc.
It controls through power line communication, LED lights (street lights, security lights and tunnel lights) using the CMS and OLC(outdoor lighting controller). The system has capability of dimming control, status monitoring and electrical data measuring.
HID Street Light Control System
It controls through power line communication, HID street lights using our CMS (central management software), electronic smart ballast, line controller. Especially, the electronic smart ballast, an innovative product, provides significant energy saving through power factor correction circuit, dimming control function, LonWorks PLC circuit, etc.
Intelligent Building System
We have developed and manufactured LonWorks platform control devices and systems for building automation which manage the equipment and facility efficiently since our foundation. It supplies the comfortable environment and energy saving for building users. We are offering a wide range of solution from device development to design, system installation and commissioning and maintenance for IBS.
LED Street Light
Luminaires
Luminaires
- Uses suitable lens for streetlight.
- Enhances light dispersion and distribution by improving light straightness.
- Easy installation due to the same width as existing sodium luminaires.
- Applies aerodynamic design.
- Improves heat dissipation using individual heat sink.
- Saves energy by applying high efficiency power LED.
- Eco-friendly product applying LED light source.
- Guaranties 50,000 hours of life time due to perfect heat dissipation.
- Designed to meet IP65.
Features
Specifications
LED Tunnel Light
Luminaires
Luminaires
- Designed for tunnels, underground passes, etc.
- Easy maintenance. (Separate spaces for the LED Modules and SMPS / OLC)
- Improves heat dissipation with individual LED module heat sink.
- Energy saving by applying high efficiency power LED.
- Eco-friendly product applying LED light source.
- Guaranties 50,000 hours of life time due to perfect heat dissipation.
- Designed to meet IP65.
- Built-in LED protection filter.
Features

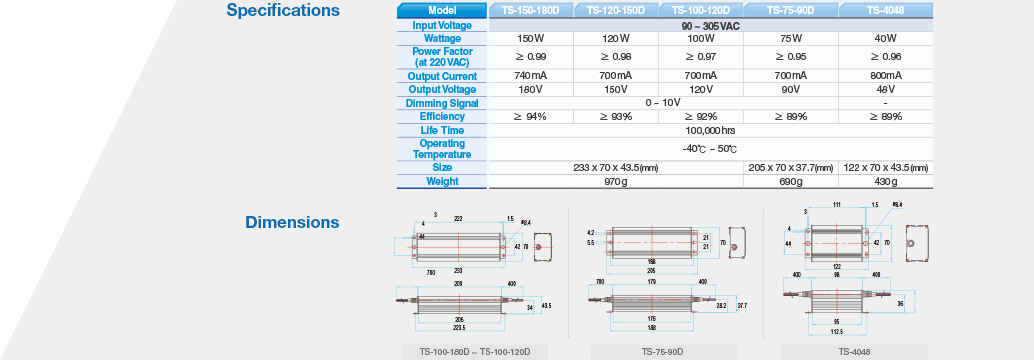

Specifications
LED Street Light SMPS
[ For Series connected LED’s ]
[ For Series connected LED’s ]
- Universal AC input (90VAC up to 305VAC) / Full range.
- Short circuit / Overload / Over voltage /Over temperature Protection.
- Built-in constant current limiting circuit with adjustable OCP
(Over Current Protection) level. - Built-in active PFC function.
- IP 67 design for indoor or outdoor installations.
- Isolated Input - Output.
- Cooling by free air convection.
- Non- electrolytic Capacitor.
- Long life time over 100,000 Hrs.
- Applicable for Dimming system. (0 ~ 10 : Optional )
- Built-in surge protection circuit.
Features

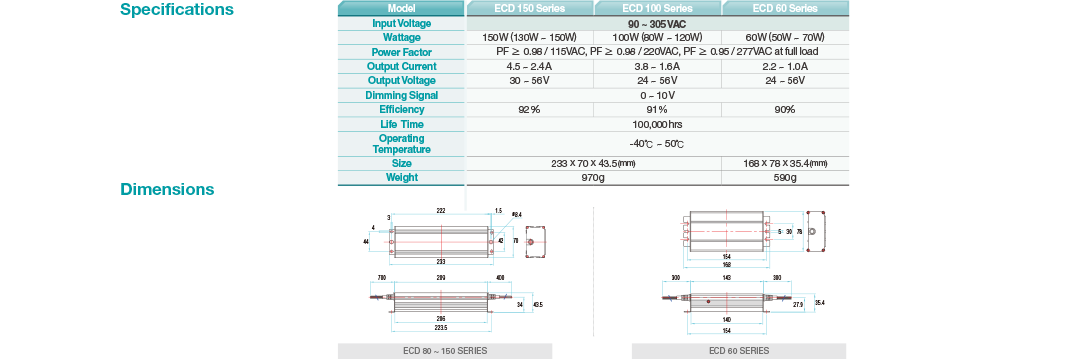

Specifications
LED Street Light SMPS
[ For Parallel connected LED’s ]
[ For Parallel connected LED’s ]
- Universal AC input (90VAC up to 305VAC) / Full range.
- Short circuit / Overload / Over voltage /Over temperature Protection.
- Built-in constant current limiting circuit with adjustable
OCP (Over Current Protection) level. - Built-in active PFC function.
- IP 67 design for indoor or outdoor installations.
- Isolated Input - Output.
- Cooling by free air convection.
- Non- electrolytic Capacitor.
- Long life time over 100,000 Hrs.
- Applicable for Dimming system. (0 ~ 10 : Optional )
- Built-in surge protection circuit.
Features
Specifications
Integrates LED
Streetlight Controller
Streetlight Controller
All-in-one LED smart driver that performs multiple tasks of LED lamp brightness adjustment and read/report of electrical data such as power consumption, current, voltage and etc, by combining power supply function and communication function.
- LED LAMP ON/OFF & Dimming control. (20%~100%)
- Various protection functions embedded. (lamp overcurrent /
overvoltage monitoring and automatic output cutoff, etc) - Gathers / reports input voltage, current, power consumption.
- Gathers / reports lamp run hours, energy use.
- With the power line communication modem (PLC-33) built in,
it controls the lamp without extra communication lines.
Features

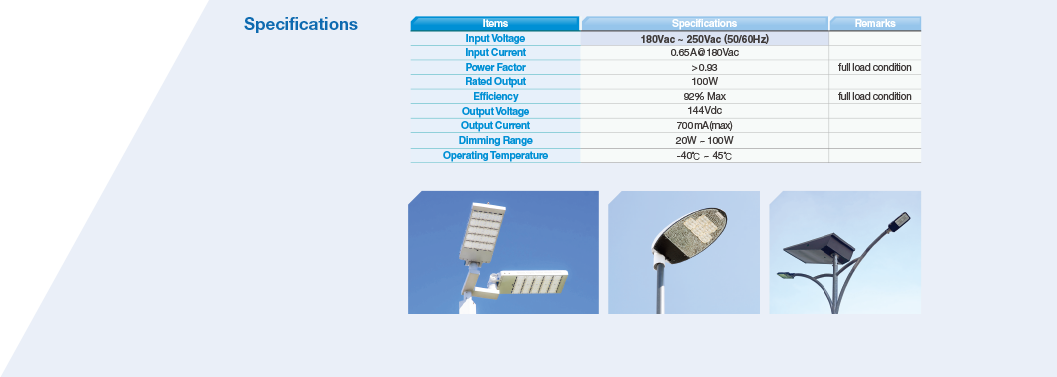

Specifications
ADSLCⅡ OLC
[ OLC(Outdoor Lighting Controller) ]
[ OLC(Outdoor Lighting Controller) ]
Dimming and Energy Consumption Monitoring Capabilities through Power Line Communication Based on LonWorks.
ADSLC II, a streetlight controller, builds streetlight control network with power line communication, and can be accessed through the iLon SmartServer by Internet or mobile wireless network in order to manage and control streetlights.
- Enables dimming control and lamp on / off through dimming signal. (0~10V dc)
- Has metering function measuring electrical data such as current,
voltage, power, etc. - Is equipped with the function to detect leakage current.
- Complies with LonMark standards.
- Can build streetlight network through power line communication.
- Applies DPST 2FORM Y type relay to remove residual light of LED that protects
lamp from surge during daytime and prevents energy loss by leakage current.
Features
Specifications

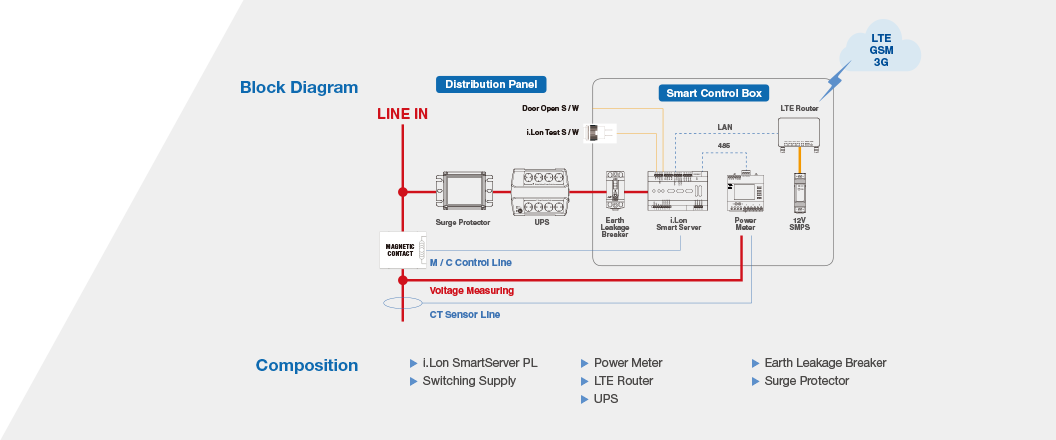

Street Light Smart
Control Box
Control Box
- Enables real time monitoring and controlling using various devices.
(PC, smart phone, tablet, etc) - Monitors the status of lamps on / off, dimming level, failures,
line voltage / current / power. - Controls lamp on/off, dimming level.
- Supports access to the system through mobile devices. (iOS, Android)
- Supports power line communication.
- Supports LTE (Band1, Band3, Band5, category3) and WCDMA (Band1), GSM.
- Protects the devices inside the box using 10kA rated
breaking current breaker. - Optimized compact size. (280mm * 235mm * 94.6mm)
Features
Specifications
Advanced Streetlight
Management Software
Management Software
System Overview
This Advanced Streetlight Management System is a real time control system based on GIS that monitors and controls street lights remotely.
- Able to run up to 1,000 SmartServers and 100,000 light points
- Easy access and convenience of use through GIS (Map) service
- Able to use the system without installing client system through
HTML5 web based service and to access the system with PC’s,
tablets and smart phones. - Cost Reduction through building dynamic IP based network.
(DDNS, static IP not used)

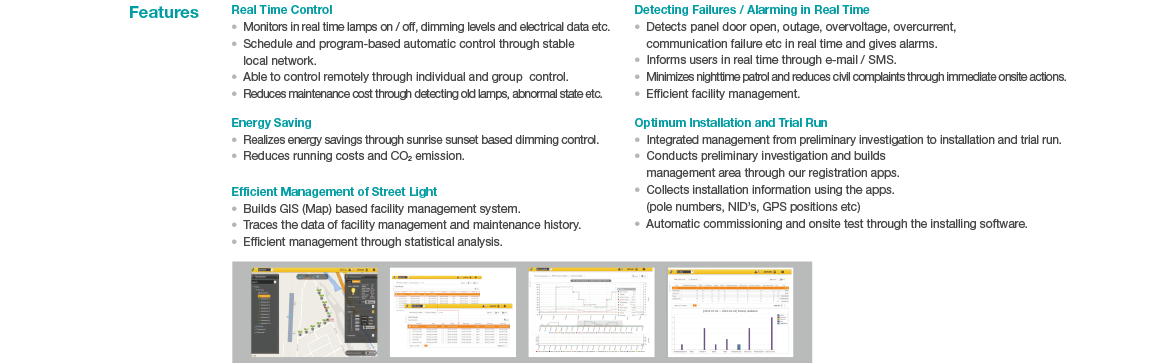

Features
Specifications
LCM Series Lighting
Control Module
Control Module
The intelligent building system requires interoperable, reliable and efficient lighting facility more and more. The LCM is an Lonworks based lighting controller that provide 4 latch relay output for lighting application.
This lighting control module assures seamless integration into Lonworks, thus enabling more effective building operation and energy saving. It is designed to efficiently control and add value to the building industry. Specially, LCM supports the function that is able to manage the communication traffic in lighting control network to improve the reliability of control network through using appropriate configuration property and detecting the error and retrying communication by comparing the control command and the status of latched relay.
- 4 independent latch relay outputs.
- User friendly, customer based Plug-In.
- LED indication for each relay status.
- Easy installation and maintenance.
- Provide a wide range of lighting control strategies.
Features
Specifications
LPS Series Lighting
Programmable Switch
Programmable Switch
The LPS product series are the LonMark programmable switches for the open protocol lighting control applications. It can be used with any other Lonworks interoperable devices.
Bar type, square type and metal cover type are available. Each type has 1, 2, 3, 4 and 8-circuit switches. These devices have a protection coupling circuit to avoid potential damage from misuse or misapplication especially when the Linked Power Line becomes short circuit. Moreover, Users can use both the 4-Wire FTT-10 Lonworks application and 2-Wire linked power LonWorks application without extra setting.
- FTT-10 and LPT-10 compatible system.
- Interoperable and LonMark 3.2 compliant.
- Lonworks “Open System” architecture, topology free, polarity free.
- LED indication of the relay status.
- Easy installation and maintenance.
- Linked power application compatible.
Features
Specifications
