Signal Coupler - Can be applied for connecting signals between mutually different phases in the PLC environment and optimized to be used in the LonWorks power line communication




APC Series

Product Features
  Connect signals between different phases Easy to install due to its plain size
Product Specifications

Item

Script

Couplering loss

- 6dB less than

Maximum operation voltage

250 VAC

Bandwidth

110KHz ~ 140KHz

Withstand voltage

 For one minute at 1,800V DC between line to line.
300MΩ minimum at 500V DC between line to case

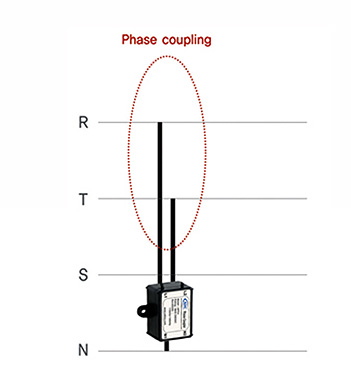

Application Diagram
