i.Node series -The i.Node series products are network I/O devices that have adopted the LonWorks flatform (ANSI/EIA/CEA 709.1) and are used exclusively for LonWorks that is a standard for the open distributed control in the industrial automation control sector.

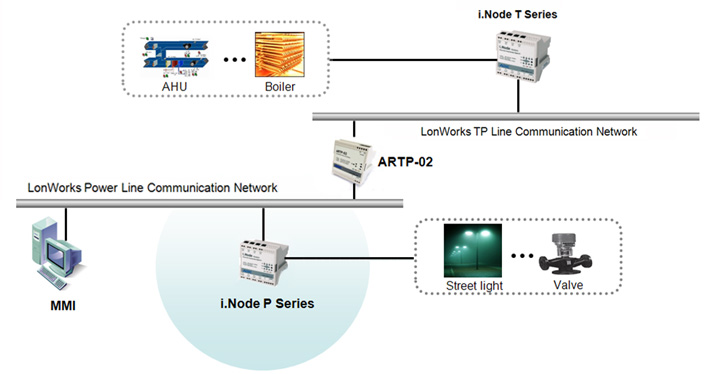

LonWorks-based controlling network can be built by connecting various digital and analog sensors and actuators to the iNode series products, receiving values from the sensors, and controlling the actuators.

i.Node PDI4DO4

Product Features

	4 digital input channels and 4 digital output 4 channels are provided	The system’s stability and scalability have been enhanced due to the intelligent distributed control method
	Easy to install and maintain as the system is based on a network.	Interactive communication, multi-targeting and multi-controlling are made possible
	Digitalized I/O processing due to intelligent devices	Easy to install and manage due to the LNS plug-in program. A user interface is supported.

Product Specifications

Item	Description
Processor Type	PL3150
Transceiver Type	PL3150
Processor Clock	10MHz
Memory	AT29C512(32K Flash Memory)
Comm. Media	PLC(Power Line Communication)
POWER	100~240 VAC, 50/60Hz
Protocol	ANSI/EIA/CEA 709.1 Lon Talk Protocol, ANSI/EIA/CEA 709.2 Power Line
Digital Input	Dry-contact, 30VDC Max (0~9V:ON, 9~ :OFF)
Digital Output	Relay Output, 3A Max
Dimension	92(W) x 96(H) x 82(D) mm
Operation Temp./Humidity	-10~50℃, 0~85%
Mounting	Wall mount type or Din Rail Base Plate type

Plug-in

Plig-In type	Functions
Digital Input	Select among the digital input detection functions: Direct, One shot, Togle, Pulsed, Override
Digital Output	Set the digital output control functions: Direct, One shot, Togle, PWM, One pulse, Preset, Override
Analog Input	Select among the analog input detection functions : Sensor type and range setting, Filter setting, NV range & offset setting
Analog Input	User table setting, Upper limit/Lower limit alarm setting, Override
Analog Outpt	Set the digital output control functions: Preset table, Input range setting, Scaling, Offset, Override
Loop	Set the PID control function: P/I/D factor setting, and P_bias, Deadband, and I limit setting
Compare	Input NV comparison function: Equal, Not Equal, Greater than equal, Less, And, Or, Or not
Multi Function	Input NV comparison and operation functions: Logic, Encoder, Counter, On time, And, And not, Or, Or not, Equal
	Not equal,Greater than equal,Less,Selector,Higher,lower,Add
	Sub,Mul,Div,Enthalpy
Analog Control	Input NV comparison and operation functions: Equal, Not equal, Greater than equal, Less, Select, Higher, lower
Analog Control	And,Andnot,Or,Ornot,Enthalpy,And,Sub,Mul,Div,Output NV scaling
Digital Control	Logic, Encoder, On time, and Counter functions based on Input NV

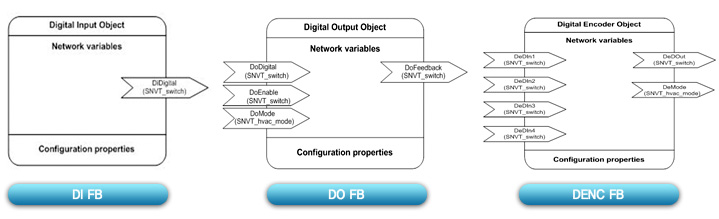

General Function Block

General Function Block
