ASP-02 - This helps the power line communication to take place in a stable manner by reducing the noise generated from loads and minimizing the lowering of impedance due to loads




ASP-02

Product Features
  Shielding of noise that could affect the power line communication Protect the power line communication from the ballast and the sources that could lower impedance
  Easy to install it as its size is small
Product Specifications

Item

Script

Input Voltage

 240VAC

Allowable Current

2A

Impedance

50ohm or higher(115 ~ 132 Khz bandwidth, ±10% in less then)

Bandwidth

 110kHz ~ 140 kHz

Withstand Voltage

 For one minute at 1,800V DC between line to line.

Insulation Resistence

 300MΩ minimum at 500V DC between line to case.

Operation Temp.

 -10℃ ~ +40℃

Non-Operation Temp.

 under -10℃, over60℃

Humidity (non-condensing)

 90% under

Dimension

 68mm X 51mm X 23mm (W X H X D), 55g

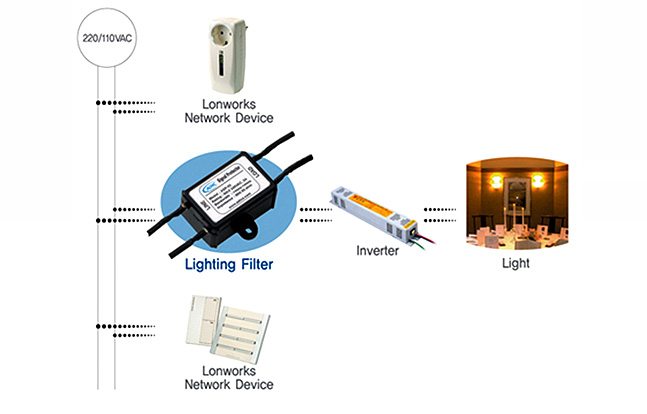

Application Diagram
